MIL-DTL-M16377/53D (date: 30 June 2014) outlines performance requirements for a kit that will convert a SYM 101.2 Lantern into a rechargeable lantern, SYM 101.3 Lantern. The rechargeable kit for bulkhead mounted lanterns shall consist of (1) Charger/Control unit (2) Rechargeable top plate (M16377/53-013) with Vent, non-sparking watertight PB switch, and LED indicator assembly installed BUT WITHOUT 10FT CABLE.

RECHARGEABLE RETROFIT KIT-Bulkhead
M16377/53-008
NSN: 6220-01-481-3827

KIT, RETRO LANTERN--Bulkhead
NSN: 6220-01-481-3827

JMC P/N: COMJMC-C497B

TO RETROFIT A RELAY BATTLE LANTERN AND MAKE IT RECHARGEABLE

Includes:
TOP PLATE
(1) Non-sparking test switch installed
(2) LED indicator installed
(3) Vent

CHARGER/CONTROL UNIT
MANUAL

**NOTE: 10 FT Cable NOT INCLUDED must use cable from SYM 101.2 being retro-fitted. RECHARGEABLE BATTERY SOLD SEPARATELY.

COMPLETE KIT OPTION

Convert SYM 101.2 to SYM 101.3 Rechargeable
NSN: 6220-01-481-3823

KIT, RETRO LANTERN-Bulkhead (COMPLETE RETROFIT KIT)
NSN: 6220-01-481-3823

JMC P/N: JMCKT-1PBCBL

TO RETROFIT A RELAY BATTLE LANTERN AND MAKE IT RECHARGEABLE (BATTERY AND 10 FT CABLE INCLUDED)

RECHARGEABLE TOP PLATE P/N M16377/53D-013
(1) Non-sparking test switch installed
(2) LED indicator installed
(3) Vent
(4) 10 FT Cable, Cap and Packing Assembly installed

CHARGER/CONTROL UNIT (JMC pn: KON-REV 3-008)

RECHARGEABLE BATTERY P/N: M16377/53C-009 MANUAL

MIL-DTL-M16377/53D outlines performance requirements for a kit that will convert a SYM 100.2 lantern into a rechargeable lantern, SYM 100.3 Lantern. The rechargeable kit for the portable handheld lanterns shall consist of (1) Charger/Control unit (2) Rechargeable handle assembly (M16377/53-012) with Vent, Toggle Switch and Boot, and LED indicator assembly installed.

RECHARGEABLE RETROFIT KIT-Portable
M16377/53-011
NSN: NOT YET ASSIGNED

KIT, RETRO LANTERN---Portable

JMC P/N: JMCKT-1002/1003

TO RETROFIT A PORTABLE BATTLE LANTERN AND MAKE IT RECHARGEABLE

Includes:

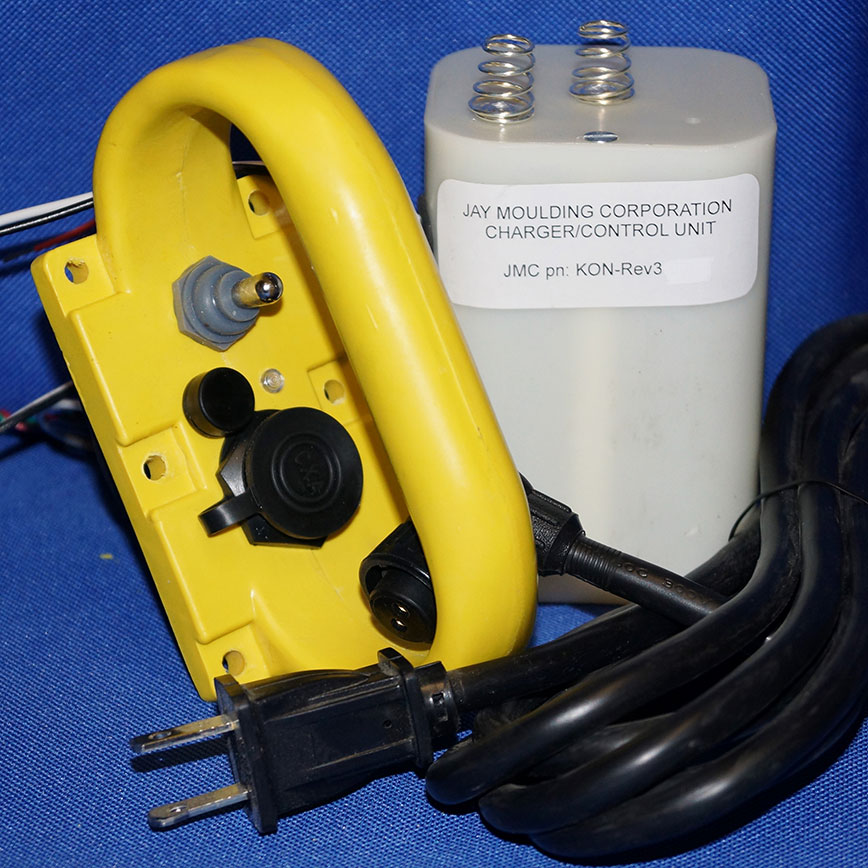

RECHARGEABLE HANDLE ASSEMBLY M16377/53D-012
(1) Vent
(2) Toggle Switch/boot
(3) Male Socket w/Watertight Cap
(4) 10ft Cable w/plug
(5) LED indicator installed

CHARGER/CONTROL UNIT
Manual
RECHARGEABLE BATTERY SOLD SEPARTAELY

NOTE: There are 3 different manufacturers of Retro Fit Kits for Battle Lanterns. If you are replacing a charger/control unit be sure you are replacing one from the same manufacturer as the original kit as they may not be interchangeable. If you are converting a SYM 101.2 to a rechargeable lantern, you will also need the rechargeable top plate which has the vent and the sealed PB switch installed.

The Kit, Retro Lantern, NSN 6220-01-481-3827 would include the components needed to meet the military specification requirements.
_________________________________________

CHARGER, BATTERY
NSN: 6130-01-463-4483

TO REPLACE A CHARGER IN A RECHARGEABLE BATTLE LANTERN MANUFACTURED BY JAY MOULDING

Includes:
CHARGER/CONTROL UNIT
(1) Non-sparking test switch
(2) LED indicator
(3) Appropriate wiring and connectors

2 Wire Nuts
Manual
